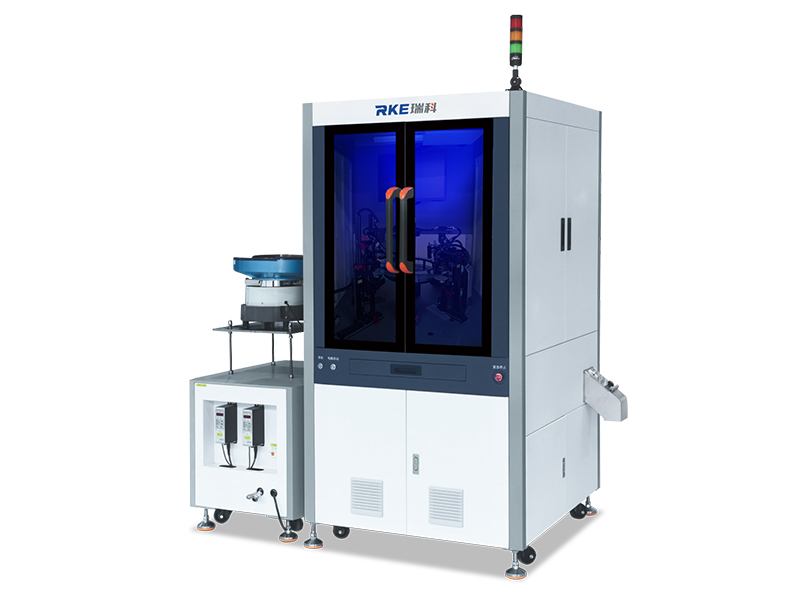

Automatic Screw Optical Sorting Machine, Thread Inspection

Screw Optical Sorting

Automatic Screw Optical Sorting Machine, Thread Inspection

  • Types:

    Glass plate optical sorting machine

  • Suited for:

    Screws, micro screws, plastic and rubber parts, electronic component and small parts

  • Inspection Accuracy:

    ±0.01mm

  • The inspection and sorting speed depends on the feeding system, up to 500-1200 pieces per minute.
Request a Quote
  • Screw Optical Sorting
  • Screw Optical Sorting
  • Screw Optical Sorting
  • Screw Optical Sorting

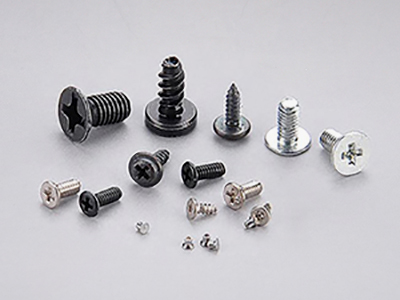

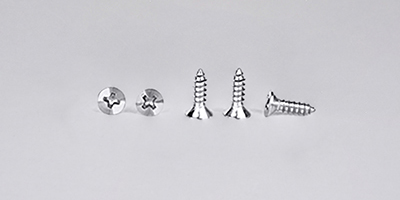

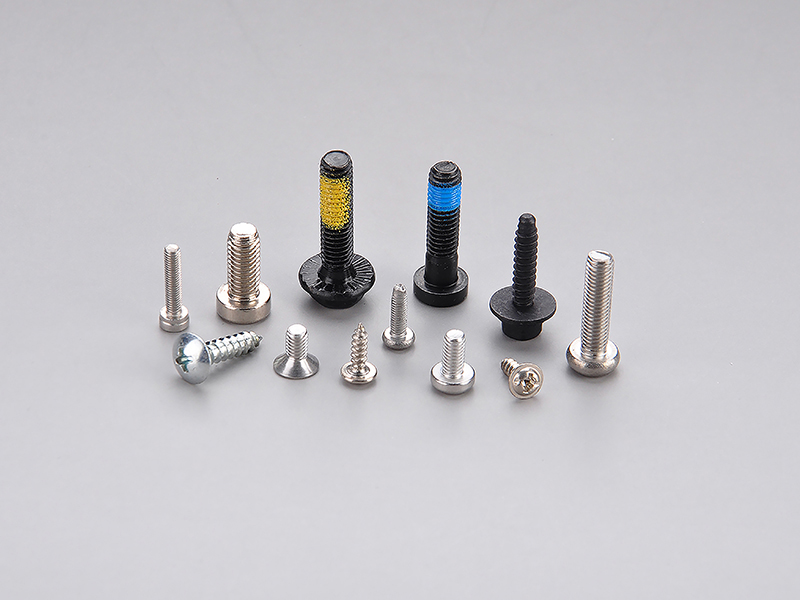

Inspecting products
  • Screw Optical Sorting
  • Screw Optical Sorting
  • Screw Optical Sorting

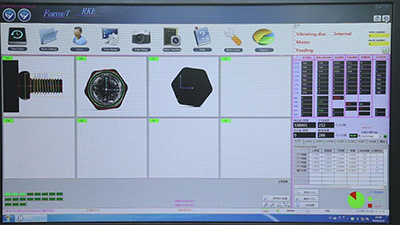

Inspection screen

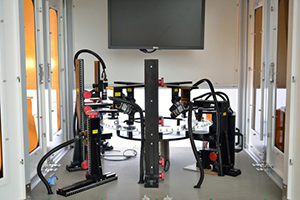

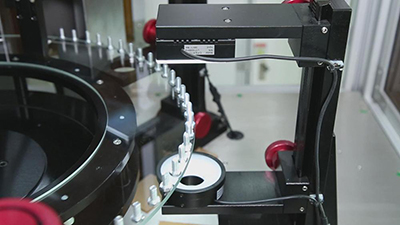

The inspection screen comes equipped with three industrial CCD cameras. The CCD1 is a head-up camera used to inspect the multi-segment height and outer diameter of the products. The CCD2 is a vertical bottom view camera used to inspect the cross slot or flat slot on the head of the product. We can add additional 1 to 4 CCD cameras for inspecting thread damage or other defects of the product with a complete 360 degree view.

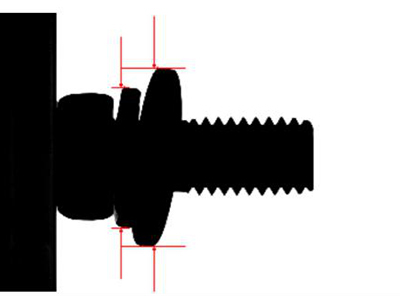

  • Screw Optical SortingCCD1, head-up

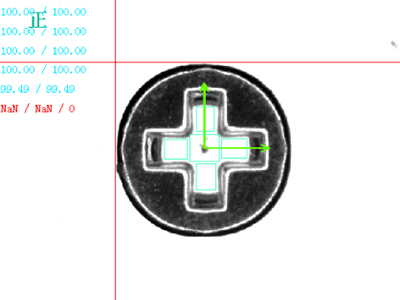

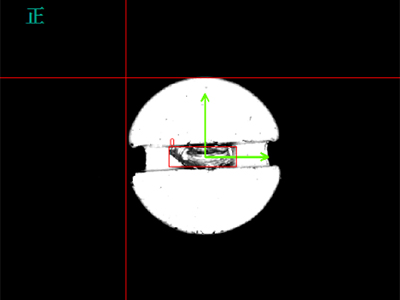

  • Screw Optical SortingCCD2, vertical bottom view
  • Screw Optical SortingCCD2, vertical bottom view

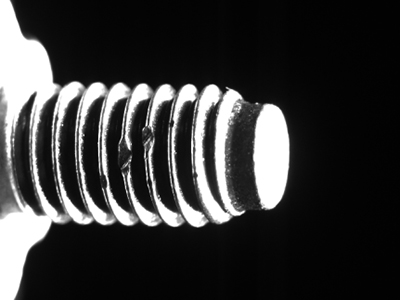

  • Screw Optical SortingCCD3-5 thread damage from 360°view
Technology parameters
  • Model: RK-1500
  • Head Outer Diameter (mm): 1-25
  • Head Thickness (mm): 1-15
  • Total Height (mm): 1-25
  • Inspection Accuracy: ±0.01mm
  • Air Pressure (Kg/cm²): 5
  • Host Computer: Industrial PC
  • Digital Camera: Industrial CCD
  • Net Weight (KGS): 650
  • Dimension (L*W*H) (mm): 1350*1100*1800

Note: Customized service can be provided according to the detect demand.

Features
  • Due to the high transparency of glass, this machine can inspect all products that can be placed stably on the glass platform.
  • 2 to 6 additional CCD cameras can be installed according to the inspection parameters on your checklist.
  • The inspection and sorting speed depends on the feeding system, up to 500-1200 pieces per minute.
  • An automatic counting and packing machine and automatic feeder can be added according to your requirements.
  • Parts are quickly changed and easy to operate.
    1. Screw Optical Sorting
      Strong versatility

      This machine is highly adaptable as it can be used to inspect various types of products by simply switching the vibration plate or track. The preparatory functions for inspecting a different product type only takes 30 minutes depending on the skill level of the operator.

    1. Screw Optical Sorting
      Inspection accuracy

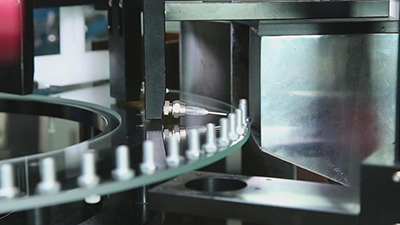

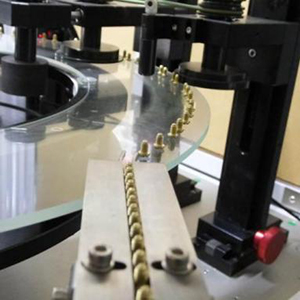

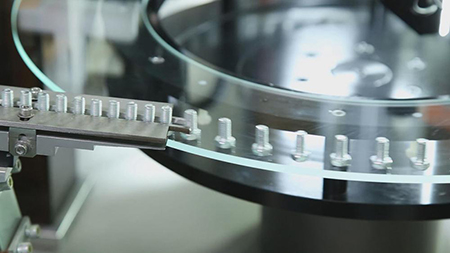

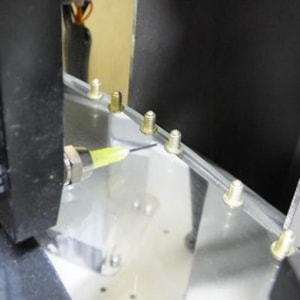

      Products will be delivered to the glass inspection platform via a vibration plate and track.
      The position of the products will be finely adjusted to reach a fixed position when it is detected and captured by the camera.
      That ensures a high level of inspection accuracy.

    1. Screw Optical Sorting
      Separate outlet for OK or NG products

      This machine has separate OK, NG, and inspection outlets. The filtered product can then be classified.

      Uncertain Product

      If a product is in an abnormal position such as too close to another product, it will be ejected to the inspection outlet.

Optional accessories
    1. Screw Optical Sorting

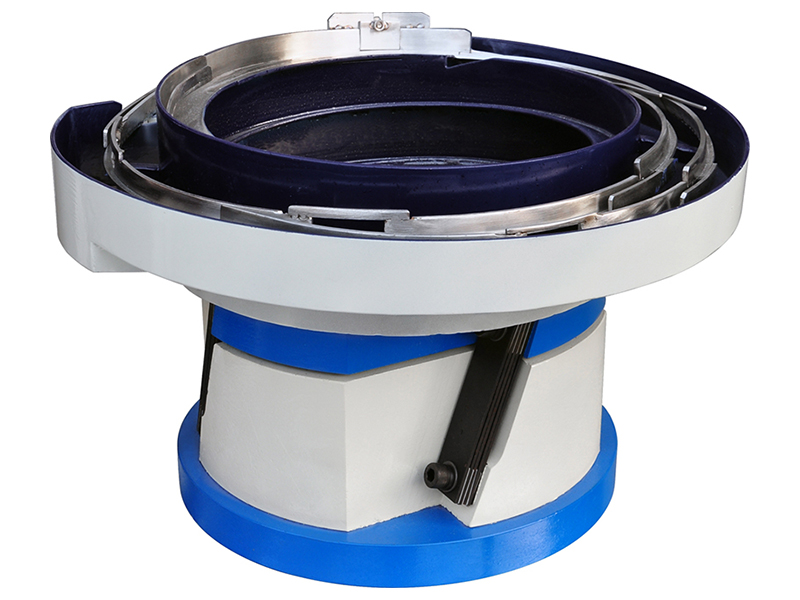

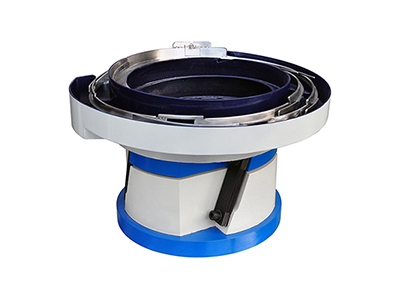

      Vibration bowl
    1. Screw Optical Sorting

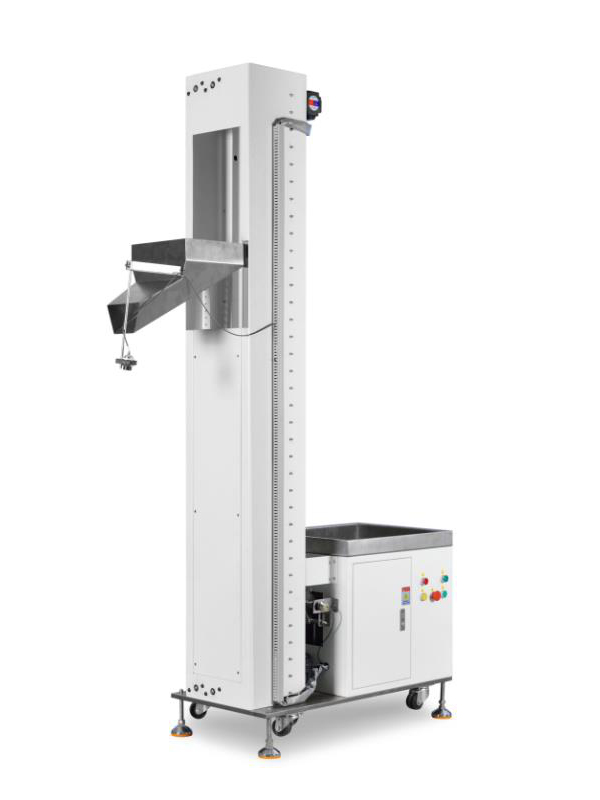

      Feeding elevator
    1. Screw Optical Sorting

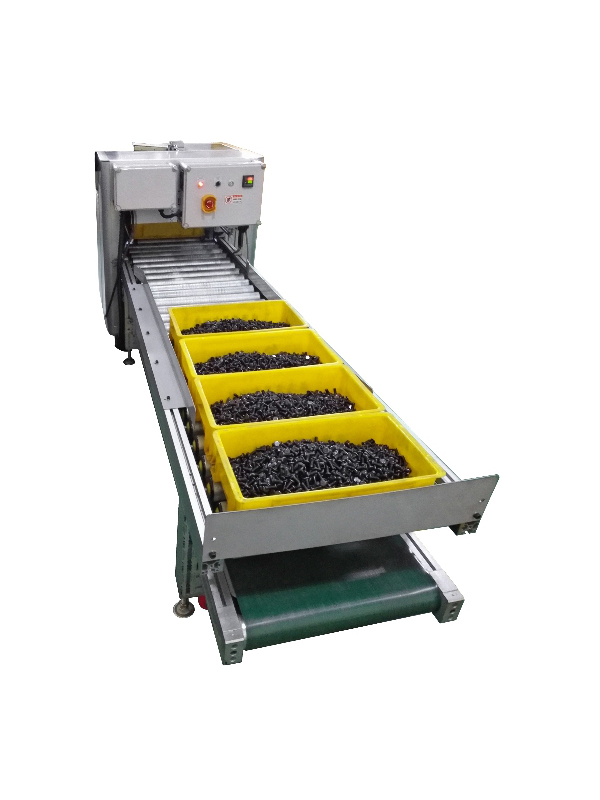

      Automated conveyor system
Frequently Asked Questions
What does RKE do?

RKE specializes in the production of vision sorting and inspection machines. Such advanced machine vision systems are technologically designed to provide automated solutions for quality control including sorting and inspection technologies for various parts and components.

What is the accuracy of the vision inspection machine?

The accuracy of the vision sorting machine varies with the characteristics of the part, such as size and color. Our visual inspection systems can achieve a precision of up to 0.01 mm, providing highly reliable inspection results.

What parts can be inspected using the vision sorting machine?

Our automated vision sorting machines can inspect various types of parts, including bolts, screws, and nuts. They are also capable of inspecting various brass parts, pins, and precision turned components with the help of machine vision technology for quality assurance and reliable results.
