Automotive Parts Inspection and Testing

Automotive Parts Inspection and Testing

Automotive Parts Inspection and Testing

  • Types:

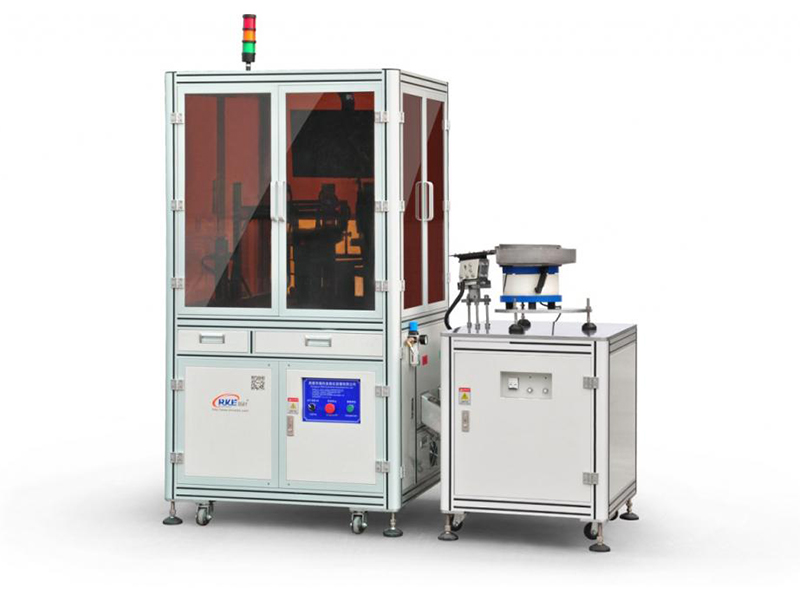

    Glass plate optical sorting machine

  • Suited for:

    Auto nuts, auto screws, tire valves, oil seals and other auto parts

  • Inspection Accuracy:

    ±0.01mm

Request a Quote
  • Automotive Parts Inspection and Testing
  • Automotive Parts Inspection and Testing
  • Automotive Parts Inspection and Testing
  • Automotive Parts Inspection and Testing

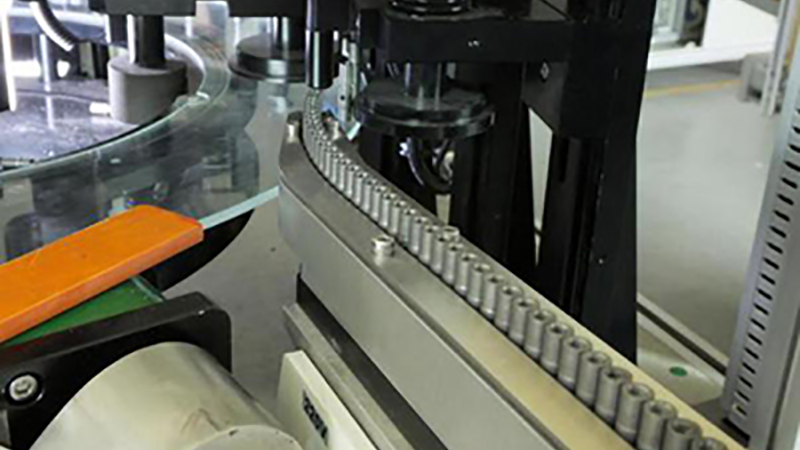

Inspecting products
  • Automotive Parts Inspection and Testing
Technology parameters
  • Model: RK-1500
  • Head Outer Diameter (mm): 1-25
  • Head Thickness (mm): 1-15
  • Total Height (mm): 1-25
  • Inspection Accuracy: ±0.01mm
  • Air Pressure (Kg/cm²): 5
  • Host Computer: Industrial PC
  • Digital Camera: Industrial CCD
  • Net Weight (KGS): 650
  • Dimension (mm): 1350*1100*1800(LWH)

Customized service can be provided according to the detect demand.

Features
  • Due to the high transparency of glass, this machine can inspect all the products which can be placed stably on the glass platform.
  • 2 to 6 additional CCD cameras can be installed according to the inspection parameters on your checklist.
  • The inspection and sorting speed depends on the feeding system, up to 500-1200 pieces per minute.
  • An automatic counting and packing machine and automatic feeder can be added according to your requirements. Parts can be quickly and easily changed.
    1. Automotive Parts Inspection and Testing
      30min inspection line changing time

      For inspecting products of similar size and type, this machine does not require the changing of accessories. Simply load the parameters using the software. For inspecting products of different types, the changing time for accessories is no more than 30 minutes depending on the skill level of the operator.

    1. Automotive Parts Inspection and Testing

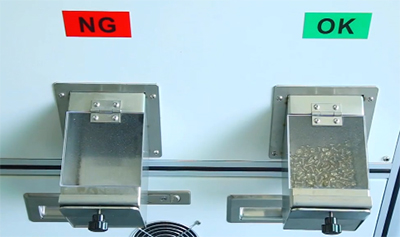

      Miss-sorting prevention

      Both NG and OK products are blanked by compressed air. Its design can effectively prevent NG products from being carried to the OK outlet even in the case of malfunction.

    1. Automotive Parts Inspection and Testing

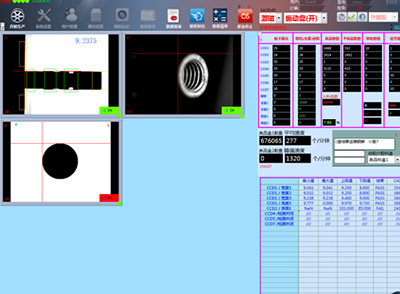

      Easy-to-use software

      The software enables the easy setting of various inspection parameters for different products. It allows you to create different accounts with levels of privilege with password protection to prevent operators from tampering with parameters.

Optional accessories
    1. Automotive Parts Inspection and Testing
      Vibration bowl
    1. Automotive Parts Inspection and Testing
      Feeding elevator
    1. Automotive Parts Inspection and Testing
      Automated conveyor system
Frequently Asked Questions
Can this automatic inspection machine be integrated into an existing production line?

Yes, our automatic visual aborting and inspection machines can be integrated into existing production lines as they are often designed with adaptability in mind, featuring customizable settings and interfaces to align with various production environments. This integration helps manufacturers enhance their quality control processes without needing to overhaul their current production setups.

What level of accuracy can be achieved with a visual sorting machine?

Visual sorting machines are known for their high levels of accuracy, often exceeding 95%. The precision depends on factors like the part's characteristics, the inspection criteria, and the machine’s technology. Advanced optical systems can detect minute defects, inconsistencies, and deviations, ensuring that only components meeting stringent quality standards are approved.

What are the benefits of using visual inspection machines for washers and nuts?

Using visual inspection machines for washers and nuts ensures uniformity and consistent quality in production. These machines can quickly detect defects, such as surface cracks, size deviations, and incorrect shapes, which are critical in components like washers and nuts. By automating the inspection process, manufacturers can reduce manual labor, improve product reliability, reduce wastage, and enhance production efficiency.
